Powerlift for snowblower using actuator

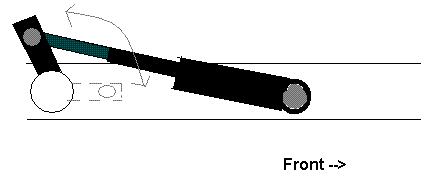

OK, here is my idea. Rather than using the lever to raise and lower the blower, I was hoping to use the actuator. In this picture, I could attach the actuator to the frame, and then add a bracket where the lift arm lever is. This should get me the up/down movement I need.

Problem is, because the blower needs some free play to float across the terrain, which I would not get from the actuator, how do I build in some slack at the bottom of the stroke?

Any advice and suggestions greatly appreciated.

SnowMower


__________________
snowmower is offline

Reply With Quote Quick reply to this message
Old 12-22-2004, 02:07 PM   #2
AlbanyBob
Registered User
Feedback Score: 0 reviews

AlbanyBob's Avatar

Join Date: Aug 2004
Posts: 170

Snowmower:

How about a spring loaded lift rod attached to the end of the actuator.

If you want I will take a picture of the one I use for my simplicity and then you can see if it will work for you.

Bob



AlbanyBob is offline

Reply With Quote Quick reply to this message
Old 12-22-2004, 02:09 PM   #3
snowmower
Registered User
Feedback Score: 0 reviews

snowmower's Avatar

Join Date: May 2004
Posts: 265

Yes please Bob.

SM

__________________
snowmower is offline

Reply With Quote Quick reply to this message
Old 12-22-2004, 02:20 PM   #4
guest2
Tractorforum.com Senior Member
Feedback Score: 0 reviews

Join Date: Dec 2003
Posts: 2,778

If you use a slot rather than a hole to mount either end of the actuator it should give you some float.

__________________
guest2 is offline

Reply With Quote Quick reply to this message
Old 12-22-2004, 02:23 PM   #5
snowmower
Registered User
Feedback Score: 0 reviews

snowmower's Avatar

Join Date: May 2004
Posts: 265

I was considering a slot on the lever side, but would it have to follow the circumferance of the circle? Or should it be straight.

How do you think a slot would go over on the frame base side?

Keep 'em coming.

SnowMower

__________________
snowmower is offline

Reply With Quote Quick reply to this message
Old 12-22-2004, 02:33 PM   #6
guest2
Tractorforum.com Senior Member
Feedback Score: 0 reviews

Join Date: Dec 2003
Posts: 2,778

From your drawing, it looks like you would have more room for slot on the frame. The slot only needs to be the as wide as the diameter of the bolt and a few inches long depending on how much float you want.

__________________
guest2 is offline

Reply With Quote Quick reply to this message
Old 12-22-2004, 02:55 PM   #7
snowmower
Registered User
Feedback Score: 0 reviews

snowmower's Avatar

Join Date: May 2004
Posts: 265

I'd be afraid that if the slot was in the front part of the frame, then the bracket on the lift arm might fall passed the middle. In other words, when I hit the actuator, it may push the blower down even further.

Hmm. Good advice though. Don't mean to poo poo all suggestions as they come in. Just hoping for some radical approach I have missed. BTW, my drawing is just theory. I know it is hard to get a feel for the setup, but any suggestion is a good suggestion. I'll try to get a pic if I can.

This is where is winch would actually be nice because you could get play in the cable.

SnowMower

__________________

Last edited by snowmower; 12-22-2004 at 03:19 PM.
snowmower is offline

Reply With Quote Quick reply to this message
Old 12-22-2004, 03:28 PM   #8
guest2
Tractorforum.com Senior Member
Feedback Score: 0 reviews

Join Date: Dec 2003
Posts: 2,778

snowmower
I was also thinking a winch would be easier in the sense that the play is built in. An actuator would take less space wouldn't it? An actuator also looks more high tech.

__________________
guest2 is offline

Reply With Quote Quick reply to this message
Old 12-23-2004, 11:10 AM   #9
snowmower
Registered User
Feedback Score: 0 reviews

snowmower's Avatar

Join Date: May 2004
Posts: 265

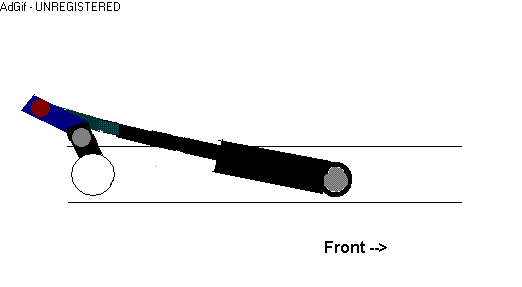

What do you guys think of this idea? I put a shackle in (blue with red dot), like the kind you would have on a trailer suspension.

Here is how I think it will work.
Raise and Lower


Free play once lowered.


Anyone see anything that I have obviously missed? Any concerns, etc.

thanks again.
SnowMower

__________________
snowmower is offline

Reply With Quote Quick reply to this message
Old 12-23-2004, 12:59 PM   #10
snowmower
Registered User
Feedback Score: 0 reviews

snowmower's Avatar

Join Date: May 2004
Posts: 265

What, no replies?! Don't you guys like my pictures?

SnowMower

__________________
snowmower is offline

Reply With Quote Quick reply to this message
Old 12-23-2004, 01:47 PM   #11
Greg
a day ahead of y'all
Feedback Score: 0 reviews

Join Date: Sep 2003
Posts: 1,510
Liked 1 Times on 1 Posts

Can you make the pic a little more detailed on the frame/blower sides. Bit hard for me to "picture" your new setup working.

__________________
Greg is offline

Reply With Quote Quick reply to this message
Old 12-24-2004, 07:59 AM   #12
Old_Nodaker
Lifetime Supporting Member
Feedback Score: 0 reviews

Old_Nodaker's Avatar

Join Date: Nov 2003
Posts: 212

Why not just use a piece of chain between the actuator and blade? How far does the actuator move?

__________________

Theres never enough time to do all the nothing you want. (Calvin)

Old_Nodaker is offline

Reply With Quote Quick reply to this message
Old 12-24-2004, 08:09 AM   #13
snowmower
Registered User
Feedback Score: 0 reviews

snowmower's Avatar

Join Date: May 2004
Posts: 265

It's for a blower actually.

Problem is, I cannot use the JB mounting brackets with the snowblower mounted. And there is not enough room at the front of the tractor to attach an actuator. So I am trying to get this mounted somewhere out of the way.

I'll try to get yas a pic. Then, my strange engineering will reveal its genious.

SnowMower

__________________
snowmower is offline

Reply With Quote Quick reply to this message
Old 12-24-2004, 08:27 AM   #14
snowmower
Registered User
Feedback Score: 0 reviews

snowmower's Avatar

Join Date: May 2004
Posts: 265

Actually, craftsman has a lift assist for the blowers using an actuator.

Found out when I picked up the latest winter attachments catalog. Will try to get a good pic of it when I (well, the wife) gets the new camera at Christmas. But is appears to run along the same lines at my train of thought.

Where the actuator would be going in on the same shaft as the lift lever and the support frame. Should be solid.

SnowMower

__________________
snowmower is offline

Reply With Quote Quick reply to this message
Old 12-24-2004, 09:26 AM   #15
Argee
Tractor Lover
Feedback Score: 0 reviews

Argee's Avatar
Tractors

Join Date: Sep 2003
Location: Wolverine, Michigan
Posts: 4,499
Liked 116 Times on 94 Posts
Likes Given: 25

Quote:
Originally posted by snowmower
Actually, craftsman has a lift assist for the blowers using an actuator.

Found out when I picked up the latest winter attachments catalog.
SnowMower
I was out on their site also...I could not find it either...are you referring to the sleeve hitch lift??
__________________
Randy G

My Weather
Argee is offline

Reply With Quote Quick reply to this message
Old 12-24-2004, 09:54 AM   #16
snowmower
Registered User
Feedback Score: 0 reviews

snowmower's Avatar

Join Date: May 2004
Posts: 265

Don't know if this helps at all. Sorry, the 'old' camera only 460 by 480.

This is with the blower raised (note lift bar on left)


This is with the blower lowered


And this is hard to see, but it is where I was planning to put the actuator.


Will try to get better pics after Christmas.

SnowMower

__________________
snowmower is offline

Reply With Quote Quick reply to this message
Old 12-24-2004, 10:19 AM   #17
guest2
Tractorforum.com Senior Member
Feedback Score: 0 reviews

Join Date: Dec 2003
Posts: 2,778

Snowmower

I guess that's not a craftsman/agrifab blower. That is completely different than what sears sells here in the states. Are you sure the lift kit you are reffering to is for the blower you have rather than the agrifab unit?

__________________
guest2 is offline

Reply With Quote Quick reply to this message
Old 12-24-2004, 01:31 PM   #18
Argee
Tractor Lover
Feedback Score: 0 reviews

Argee's Avatar
Tractors

Join Date: Sep 2003
Location: Wolverine, Michigan
Posts: 4,499
Liked 116 Times on 94 Posts
Likes Given: 25

That's definetly a different blower setup. I like the idea of the lift lever being farther back on that one..Get us some pics of the entire unit

__________________
Randy G

My Weather
Argee is offline

Reply With Quote Quick reply to this message
Old 12-24-2004, 01:57 PM   #19
DGT6000_OWNER
Registered User
Feedback Score: 0 reviews

DGT6000_OWNER's Avatar

Join Date: Jun 2004
Posts: 20

Didn't the old style electric lift assist for the Craftsman tractors lift both the sleeve hitch and the mower deck? If that is true, then you should be able to find one of those come up on eBay. Either that, or get in contact with Topdj as he has added an actuator to his mower deck lift, and last I knew, he still had some left over actuators for sale

__________________
DGT6000_OWNER is offline

Reply With Quote Quick reply to this message
Old 12-24-2004, 03:33 PM   #20
guest2
Tractorforum.com Senior Member
Feedback Score: 0 reviews

Join Date: Dec 2003
Posts: 2,778

The old style sears lift kit works through the tractor's main lift. I have it on my GT. The blower has its own arm because it doesn't tie into the tractor's main lift. It just pivots on its mounting brackets. The lift kit I have will raise/lower all sleeve hitch attachments, the mower deck and the front snow/dozer blade. The only disadvantage to this setup is you can only use one attachment at a time. Although I would not want the deck on when useing a dozer blade or a tiller, it would be nice to have both the blade and tiller on at the same time. I could do this easily enough by getting the newer sleeve hitch and adding the actuator kit for it. I chose a JBJr with actuators instead as I can use the bucket much the same as a dozer blade.



__________________
guest2 is offline

Reply With Quote Quick reply to this message
